Are you a developer working on a plugin for Rhino or Grasshopper? Do you intend to publish it via the Package Manager? If yes, here are some of my notes on how to approach publishing for different Rhino versions from a single codebase.

Multi Packaging Rhino Plugins

Introduction

As Rhino moves towards implementing modern frameworks1 (.NET Core and later) Rhino 8 helps make that transition smooth by supporting both .NET-Framework and .NET Core runtimes. Users can now switch between the frameworks using the SetDotNetRuntime2 command, with the default being .NET Core.

As a 3rd party plugin developer, you might be tempted to jump into .NET Core and start leveraging the latest features. But it is a good idea to think twice, or even a couple more times. The official guide even (mostly) recommends not upgrading.

But if you're like me, here is a brief introduction to multi-packaging using Yak CLI.

Single Target Builds

Rhino 7 supports only .NET Framework, which makes it easier to understand the build options provided by Yak. Plugins can target either Windows (win), MacOS (mac), or both (any) platform(s) using the appropriate PLATFORM option during the build3.

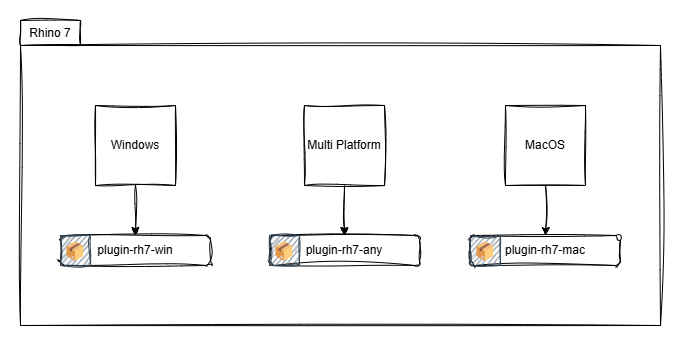

Fig 1: Target platforms available for Rhino 7
Fig 1: Target platforms available for Rhino 7

This targeting is especially useful when inclusion (or exclusion) of features and dependencies are necessary depending on the platform. A fairly common example would be switching UI frameworks when compiling for Windows and MacOS.

Plugins built for Rhino 7 (mostly) automatically work on Rhino 8, since .NET Framework is still supported. So in theory, you could stop reading at this point, push your plugins to Yak, and call it a day.

If you're still here...

Multi-Targeting on Rhino 8

On Rhino 8 things get a little more interesting. One can not only choose the target PLATFORM but also the target FRAMEWORK. This opens up a myriad of possibilities (and complexities) from the development perspective.

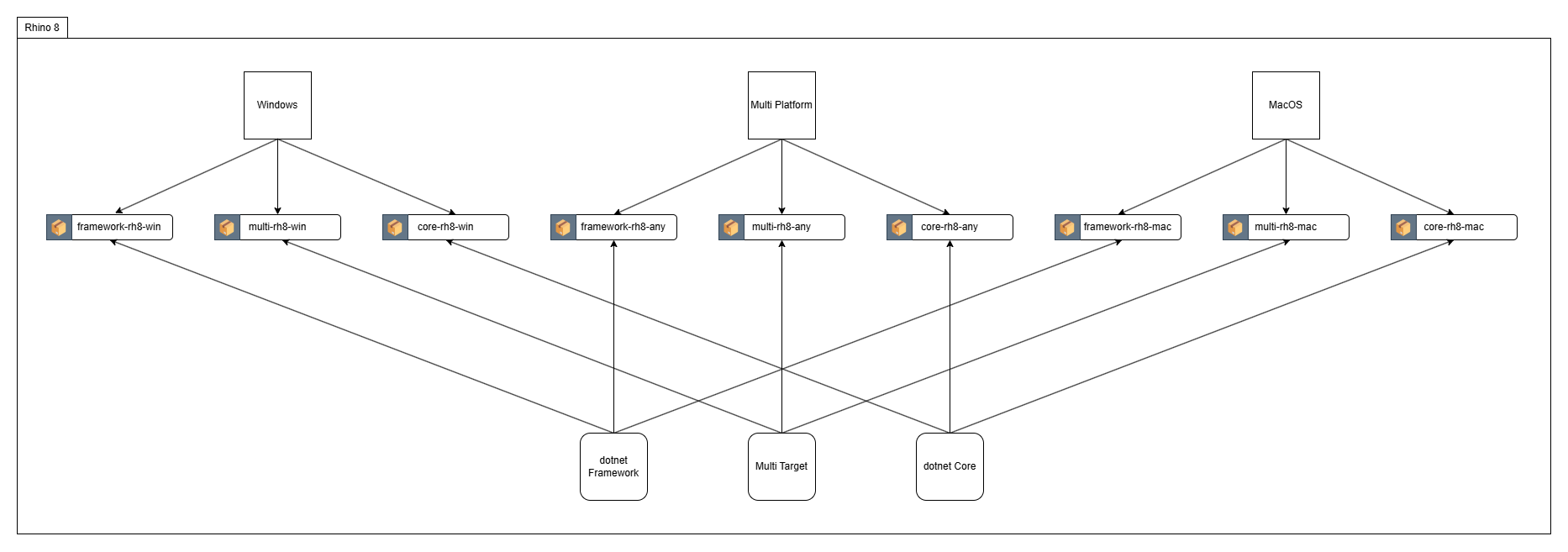

Fig 2: Target platforms and target frameworks available for Rhino 8
Fig 2: Target platforms and target frameworks available for Rhino 8

With three platform configurations and three framework configurations a total of nine different build configurations are possible. Ideally we'd have just one version to publish, one that uses .NET Core and works on both Windows and MacOS platforms.

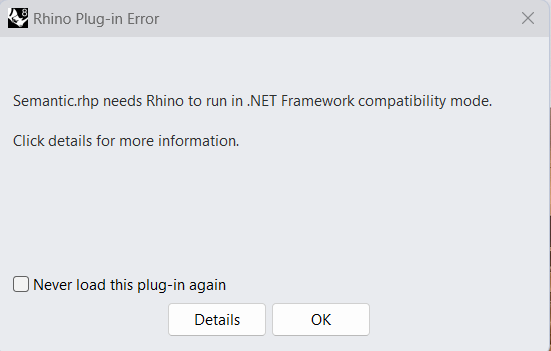

Fig 3: Example .NET Framework error message
Fig 3: Example .NET Framework error message

Some users might use other plugins that do not yet support .NET Core and start Rhino 8 in NETFramework mode. The package manager solves this via Multi-targeting4 - allowing both versions to be packaged in one distribution (.yak file) and letting Rhino select which one to load on startup.

Multi-Packaging

So what is the ideal setup if one wants to publish to multiple Rhino versions, multiple Platforms, and multiple Frameworks from a single codebase? Here is what I do in my workflow.

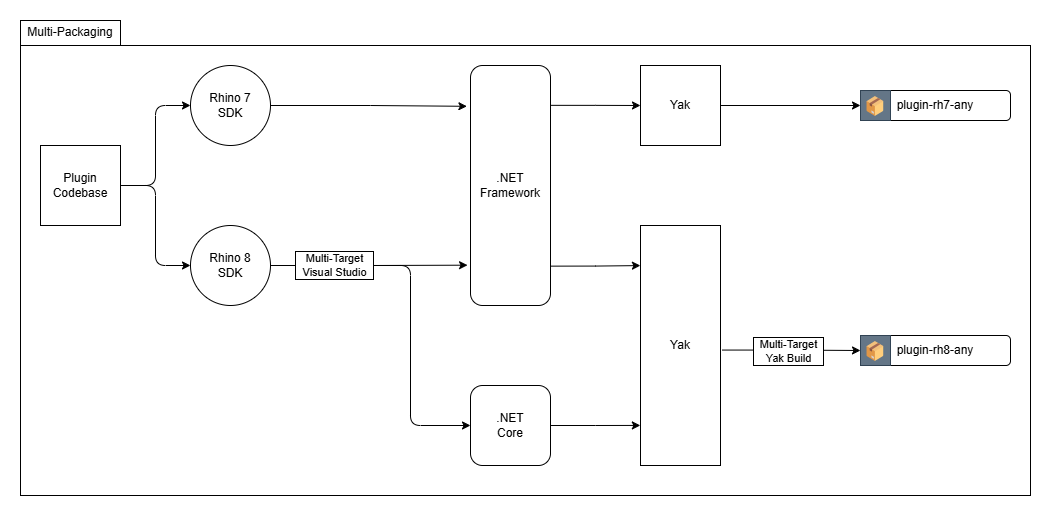

Fig 4: The Multi-Packaging workflow
Fig 4: The Multi-Packaging workflow

This approach combines two levels of multi-targeting, firstly at the source compilation step in Visual Studio (or Visual Studio Code), and then while building the Yak package. The result is two .yak files that can be pushed to the (test) server for distribution.

Now that we have a process template, it can be adapted to add/remove any other dependencies, run on a CI server5

Enjoy!

Footnotes

  1. Moving to .NET 7 on developer.rhino3d.com by Curtis-Wensley and Callum-Sykes (14 June 2024) ↩

  2. .NET Core vs .NET Framework on rhino3d.com by Brian-Gillespie (6 March 2024) ↩

  3. Yak CLI Reference on developer.rhino3d.com by Will-Pearson (29 October 2024) ↩

  4. The Anatomy of a Package on developer.rhino3d.com by Will-Pearson and Callum-Sykes (29 October 2024) ↩

  5. Yak on a CI server on discourse.mcneel.com by Will-Pearson (14 September 2021) ↩
